ECS-7710

產品特色

    • 3rd Gen Intel® Core™ i7/ i5/ i3 Ivy Bridge Mobile Processor
    • Fanless, -25°C to 70°C Operation Temperature
    • 6 Gigabit LAN with 4 IEEE 802.3at PoE+
    • Intel® QM77 Chipset
    • 1 PCIe x16 Expansion Slot
    • E13, EN50155, EN50121-3-2, VMware Ready
    • Rich I/O : 4 COM, 4 USB 3.0, 2 USB 2.0, 2 Mini PCIe (1 with SIM Card Socket)
    • Supports 2 DisplayPort, DVI-D, VGA, LVDS, up to 3 Independent Displays
    • 2 SATA III (6Gbps) 2.5” SSD/ HDD, mSATA





產品簡介

    超恩ECS- 7700系列可擴展的無風扇系統,基於第三代英特爾®四核酷睿™ i7/ i5/ i3 處理器,搭配4個乙太網供電PoE +端口以及2個乙太網路口。ECS- 7700系列還提供了1個可擴展的PCI或PCIe插槽,4個COM, 4個USB 3.0 , 2個USB 2.0和2個Mini PCIe (其中1個SIM卡插槽支援3G/GPRS和無線網路)。精實設計單槽可擴充平台,加上多樣I / O連接埠和寬溫運作範圍(-25℃至+70℃) , ECS- 7700系列非常適合運用於機器視覺,智能自動化,智能化製造系統,自動化網絡通信,和物聯網應用。



產品規格

System
Processor Intel® Core™ i7-3610QE/ i5-3610ME/ i3-3120ME
Chipset Intel® QM77
BIOS AMI
SIO IT8783
Memory 2 DDR3 1066/ 1333/ 1600 MHz or DDR3L 1066/ 1333 MHz SO-DIMM, up to 16GB
I/O Interface
Serial
- 1 COM RS-232/ 422/ 485
- 3 COM RS-232
USB
- 4 USB 3.0 (External)
- 4 USB 2.0 (2 External, 2 Internal by JST Connector)
Isolated DIO 16 Isolated DIO : 8 DI, 8 DO
GPIO 16 GPIO (Internal)
LED Power, HDD, PoE
SIM Card 1 SIM Card Socket (Internal)
Expansion
Mini PCIe
2 Mini PCIe Socket :
- 1 Mini PCIe for PCIe/ USB/ Internal SIM Card/ Optional mSATA
- 1 Mini PCIe for PCIe/ USB/ Optional mSATA
PCIe 1 PCIe x16 Slot
Graphics
Chipset Intel® HD 4000
Display Memory Shared Memory, Up to 1.7GB
Interface
- VGA : DB-15, up to 1920 x 1200
- DVI-D : Up to 1920 x 1200
- DisplayPort 1 : Up to 2560 x 1600
- DisplayPort 2 : Up to 1920 x 1200
- LVDS : Dual channel 24-bit, up to 1920 x 1200
Storage
SATA
- 2 SATA III (6Gbps)
- 1 SATA II (3Gbps), supports horizontal type SATA DOM
mSATA 2 SATA II (Mini PCIe Type, 3Gbps)
Storage Device
- 1 CFast Socket, Push-in/ Push-out Ejector
- 2 2.5" SSD/ HDD Bracket (Internal)
Audio
Audio Codec Realtek® ALC892, 5.1 Channel HD Audio
Audio Interface 1 Line-in, 1 Line-out, 1 Mic-in
Ethernet
LAN 1 Intel® 82579LM Gigabit LAN supports iAMT 8.0
LAN 2 Intel® 82574L Gigabit LAN
PoE
LAN 3 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® 82574L
LAN 4 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® 82574L
LAN 5 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® 82574L
LAN 6 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® 82574L
Power
Power Input 6V to 36V, DC-in
Power Interface
- 3-pin Terminal Block : V+, V-, Frame Ground
- Mini-DIN 4-pin
Remote Switch 3-pin Terminal Block : On, Off, IGN
Surge Protection Up to 80V/1ms Transient Power
Others
Trusted Platform Module (TPM) Optional Infineon SLB9635 supports TPM 1.2, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical

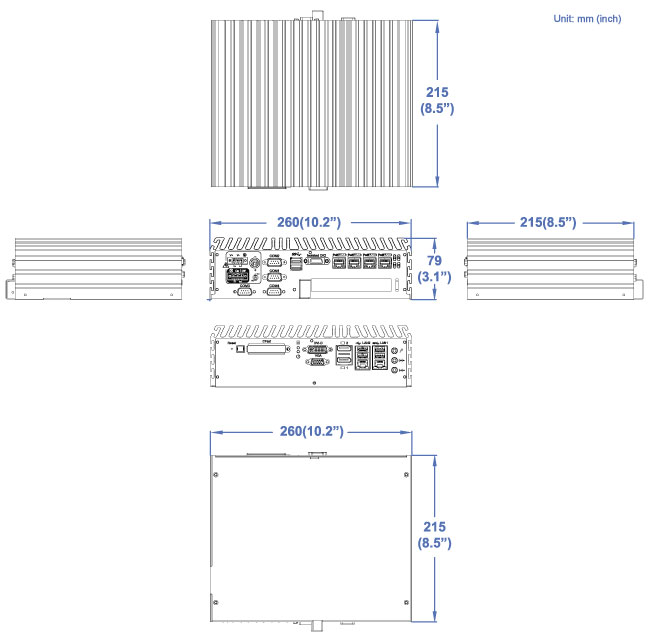

Dimensions (W x L x H) 260mm x 215mm x 79mm (10.2" x 8.5" x 3.1")
Weight 2.8 kg (6.2 lb)
Mounting
- Wallmount by mounting bracket
- 2U Rackmount (Optional)
Environment
Operating Temperature -25°C to 70°C  (-13°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 10% to 95% Humidity, non-condensing
Relative Humidity 95% at 70°C
Vibration
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
Shock
- IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
Certification E13, CE, FCC, EN50155, EN50121-3-2, VMware Ready
