ECS-7800-PoE

產品特色

    • Quad Core Intel® Core™ i7/ i5/ i3 Processor (Ivy Bridge)
    • Supports VGA/ DVI-D/ Dual DisplayPort/ LVDS interface, up to 3 independent displays
    • Fanless, -25°C to 70°C Operating Temperature
    • 6 Gigabit LAN with 4 IEEE 802.3at PoE+
    • 16 Isolated DIO, 16 GPIO
    • SIM Card Socket for 3G/ 4G/ LTE/ WiFi/ GPRS/ UMTS
    • 6V to 36V DC-in, 80V Surge Protection
    • 2 2.5" SSD/ HDD, 1 Front-access CFast Socket
    • 4 COM, 4 USB 3.0, 4 USB 2.0
    • 2 Mini PCIe, 2 SATA III, 1 SATA II, 2 SUMIT (Optional)
    • Intel® AMT 8.0 supported
    • E13, EN50155, EN50121-3-2, VMware Ready



產品簡介

    ECS-7800-PoE支援第三代英特爾®四核酷睿™系列處理器(6M高速緩存,3.30 GHz),DDR3L和雙通道DDR3最大16GB記憶體, 4個IEEE 802.3at 標準PoE +接口,5個顯示器接口(2 DisplayPort,DVI-D,VGA,LVDS),Isolated DIO,2個乙太網路連接埠,CFast,2個2.5吋SATA 3 傳輸速度6Gp / s的SSD 或HDD放置空間,4個COM,4個USB 3.0,JST連接器,2個Mini PCIe,加上過電壓保護和受信任的平台模塊 (Trusted Platform Module) 使得ECS-7800-PoE能廣泛的被運用在機器視覺、乙太網影像、智能交通系統、機器視覺、安全監控、AOI、和大多數嵌入式應用之中。




產品規格



System
Processor Intel® Core™ i7-3610QE/ i5-3610ME/ i3-3120ME
Chipset Intel® QM77
BIOS AMI
SIO IT8783
Memory 2 DDR3 1066/ 1333/ 1600 MHz or DDR3L 1066/ 1333 MHz SO-DIMM, up to 16GB
I/O Interface
Serial
- 1 COM RS-232/ 422/ 485
- 3 COM RS-232
USB
- 4 USB 3.0 (External)
- 4 USB 2.0 (2 External, 2 Internal by JST Connector)
Isolated DIO 16 Isolated DIO : 8 DI, 8 DO
GPIO 16 GPIO (Internal)
LED Power, HDD
SIM Card 1 SIM Card Socket (Internal)
Expansion
Mini PCIe
2 Mini PCIe Socket :
- 1 Mini PCIe for PCIe/ USB/ Internal SIM Card/ Optional mSATA
- 1 Mini PCIe for PCIe/ USB/ Optional mSATA
SUMIT A, B 2 SUMIT Slot (Optional)
Graphics
Chipset Intel® HD 4000
Display Memory Shared Memory, Up to 1.7GB
Interface
- VGA : DB-15, up to 1920 x 1200
- DVI-D : Up to 1920 x 1200
- DisplayPort 1 : Up to 2560 x 1600
- DisplayPort 2 : Up to 1920 x 1200
- LVDS : Dual channel 24-bit, up to 1920 x 1200
Storage
SATA
- 2 SATA III (6Gbps)
- 1 SATA II (3Gbps), supports horizontal type SATA DOM
mSATA 2 SATA II (Mini PCIe Type, 3Gbps)
Storage Device
- 1 CFast Socket, Push-in/ Push-out Ejector
- 2 2.5" SSD/ HDD Bracket (Internal)
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Line-in, 1 Line-out, 1 Mic-in
Ethernet
LAN 1 Intel® 82579LM Gigabit LAN supports iAMT 8.0
LAN 2 Intel® 82574L Gigabit LAN
PoE (Power-over-Ethernet)
LAN 3 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® 82574L
LAN 4 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® 82574L
LAN 5 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® 82574L
LAN 6 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® 82574L
Power
Power Input 6V to 36V, DC-in
Power Interface
 3-pin Terminal Block : V+, V-, Frame Ground
- Mini-DIN 4-pin
Remote Switch 3-pin Terminal Block
Surge Protection Up to 80V/1ms Transient Power
Others
Trusted Platform Module (TPM) Optional Infineon SLB9635 supports TPM 1.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical

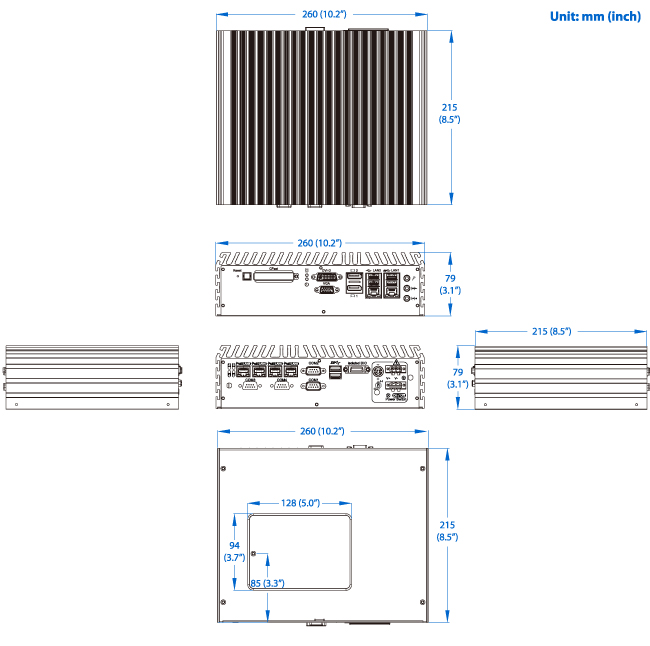

Dimensions (W x L x H) 260mm x 215mm x 79mm (10.2" x 8.5" x 3.1")
Weight 3.0 kg (6.6 lb)
Mounting
- Wallmount by mounting bracket
- 2U Rackmount (Optional)
Environment
Operating Temperature -25°C to 70°C  (-13°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 10% to 95% Humidity, non-condensing
Relative Humidity 95% at 70°C
Vibration
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
Shock
- IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
Certification E13, CE, FCC, EN50155, EN50121-3-2, VMware Ready
