System |
|
Processor |
Intel Atom® x6425RE Processor (EIkhart Lake) |
|
Chipset |
Intel® SoC |
|
BIOS |
AMI |
|
SIO |
IT8786E |
|
Memory |
1 DDR4 3200MHz SO-DIMM, up to 32GB |
|
OS |
Windows 10, Linux |
|
I/O Interface |
|
USB |

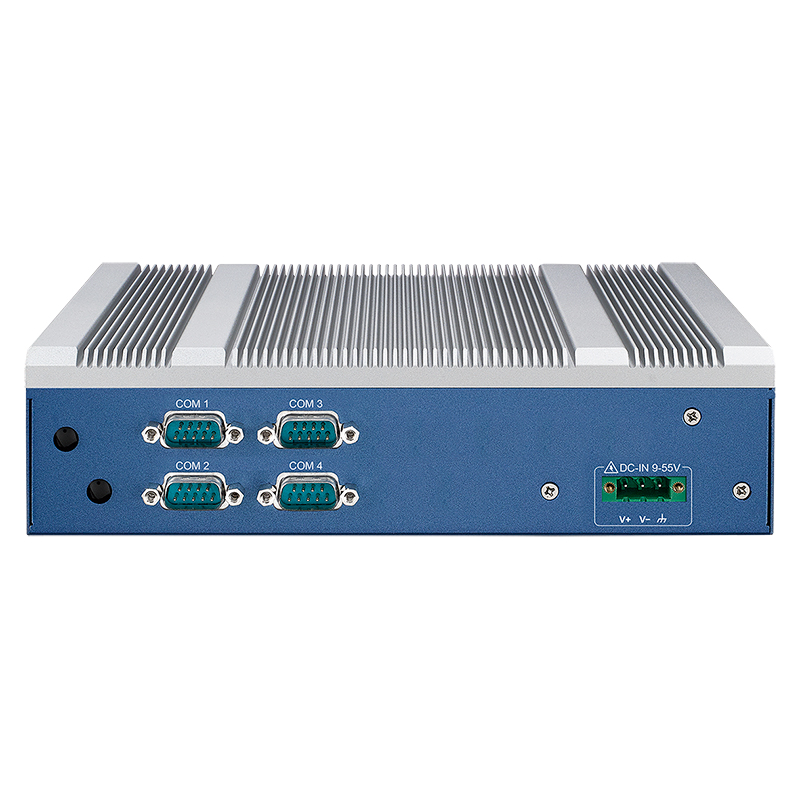

4 COM RS-232/422/485(ESD 8kV) |
|
Serial |
-2 USB 3.1
-2 USB 2.0
|
|
LED |
HDD, WLAN, Power, WWAN, P1, L/A, F/O |
|
SIM Card |
1 External Nano SIM Card Socket |
|
Expansion |
|
M.2 |
1 M.2 Key E Socket (2230, PCIe/USB) |
|
Graphics |
Graphics
Processor |
Intel® UHD Graphics for 10th Gen Intel® Processors |
|
Interface |
Dual Display :
- DVI-I : Up to 3840 x 2160 @60Hz
- DisplayPort : Up to 4096 x 2160 @60Hz
|
|
Storage |
|
M.2 |
1 M.2 Key M Socket (2280, PCIe x2/SATA) |
|
Audio |
|
Audio Codec |
Realtek ALC888S-VD, 7.1 Channel HD Audio |
|
Audio Interface |
Line-out |
|
Ethernet |
|
LAN 1 |
Intel® Ethernet Controller I210 supports GigE LAN |
|
LAN 2 |
Intel® Ethernet Controller I225 supports 2.5GigE LAN |
|

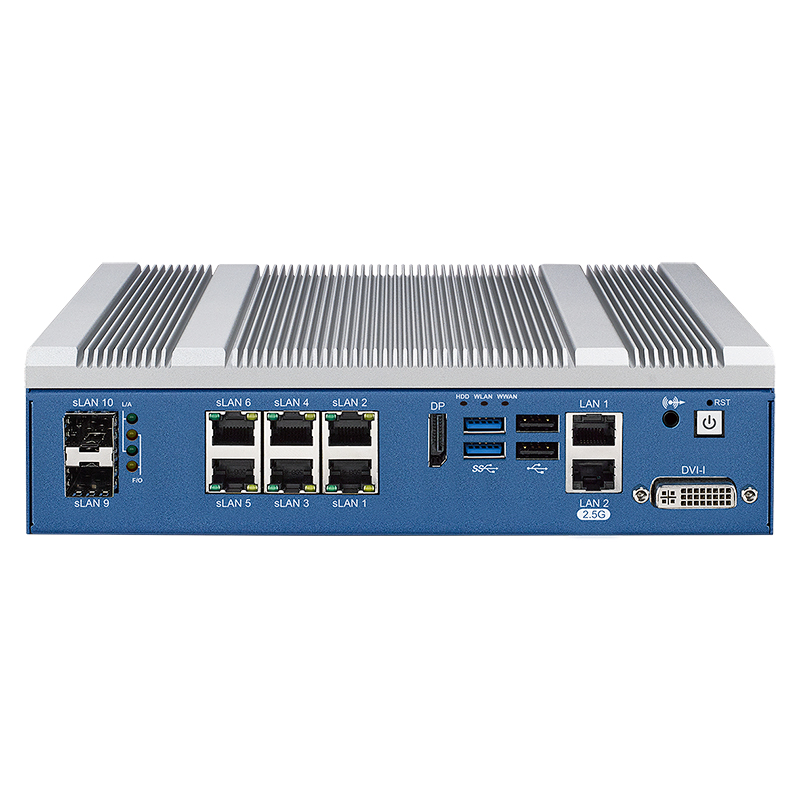

Switch Ethernet |
|
sLAN 1 to sLAN 6 |
10/100/1000 Base LAN port |
|
sLAN 9 & sLAN 10 |
100/1000 Base SFP port |
|
Power |
|
Power Input |
DC 9V to 55V |
|
Power Interface |
3-pin Terminal Block : V+, V-, Frame Ground |
|
Others |
|
TPM |
Infineon SLB9670 supports TPM 2.0, SPI Interface |
|
Watchdog Timer |
Reset : 1 to 255 sec./min. per step |
|
Smart Management
|
Wake on LAN
|
|
HW Monitor |
Monitoring temperature, voltages. Auto throttling control
when CPU overheats.
|
|
Mechanical |
|
Dimension |
225.0mm x 150.4mm x 58.0mm (8.86" x 5.92" x 2.28") |
|
Weight |
1.9 kg (4.19 lb) |
|
Mounting |
-Wallmount by mounting bracket
-DIN Rail Mount (Optional)
|
|
Environment |
|
Operating Temperature |
-25°C to 70°C (-13°F to 157°F) |
|
Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
|
Humidity |
5% to 95% Humidity, non-condensing |
|
Relative Humidity |
95% @70°C |
|
Shock |
-IEC 60068-2-27
-SSD：50G @ wallmount, Half-sine, 11ms
|
|
Vibration |
-IEC 60068-2-64
-SSD：5Grms, 5Hz to 500Hz, 3 Axis
|
|
EMC |
CE, FCC, EN50155, EN50121-3-2 |
