EAC-5100-OOB

产品特色

    • Advanced NVIDIA® Jetson AGX Orin™ platform delivers up to 275 TOPS AI performance
    • Latest NVIDIA Ampere™ architecture, featuring with 2048 NVIDIA® CUDA® cores and 64 Tensor cores
    • 1 PCIe Gen4 x8 expansion slot supports optional multiple 10GigE/PoE LAN/USB connections
    • 2 Isolated CAN Bus support Flexible Data-rate, 2 COM RS-232/422/485
    • 6 GigE LAN with 4 PoE+, 5 USB 3.1, 1 Digital Display supports 8K60
    • Support disaster recovery by Out-of-Band management
    • DC 9V to 50V wide range power input, Ignition Power Control



    产品亮点

    Power-efficient AI Productivity

    • NVIDIA Jetson AGX Orin Platform, max 12-core Arm Cortex-A78AE v8.2 64-bit CPU, up to 275 TOPS AI performance with power configurable between 15W and 60W
    • The latest NVIDIA Ampere architecture GPU with max 2048 NVIDIA CUDA cores and 64 Tensor cores
    • 2x NVIDIA Deep Learning Accelerate Engines
    • LPDDR5x Memory, up to 64GB
    • Up to 8X performance of NVIDIA Jetson AGX Xavier platform

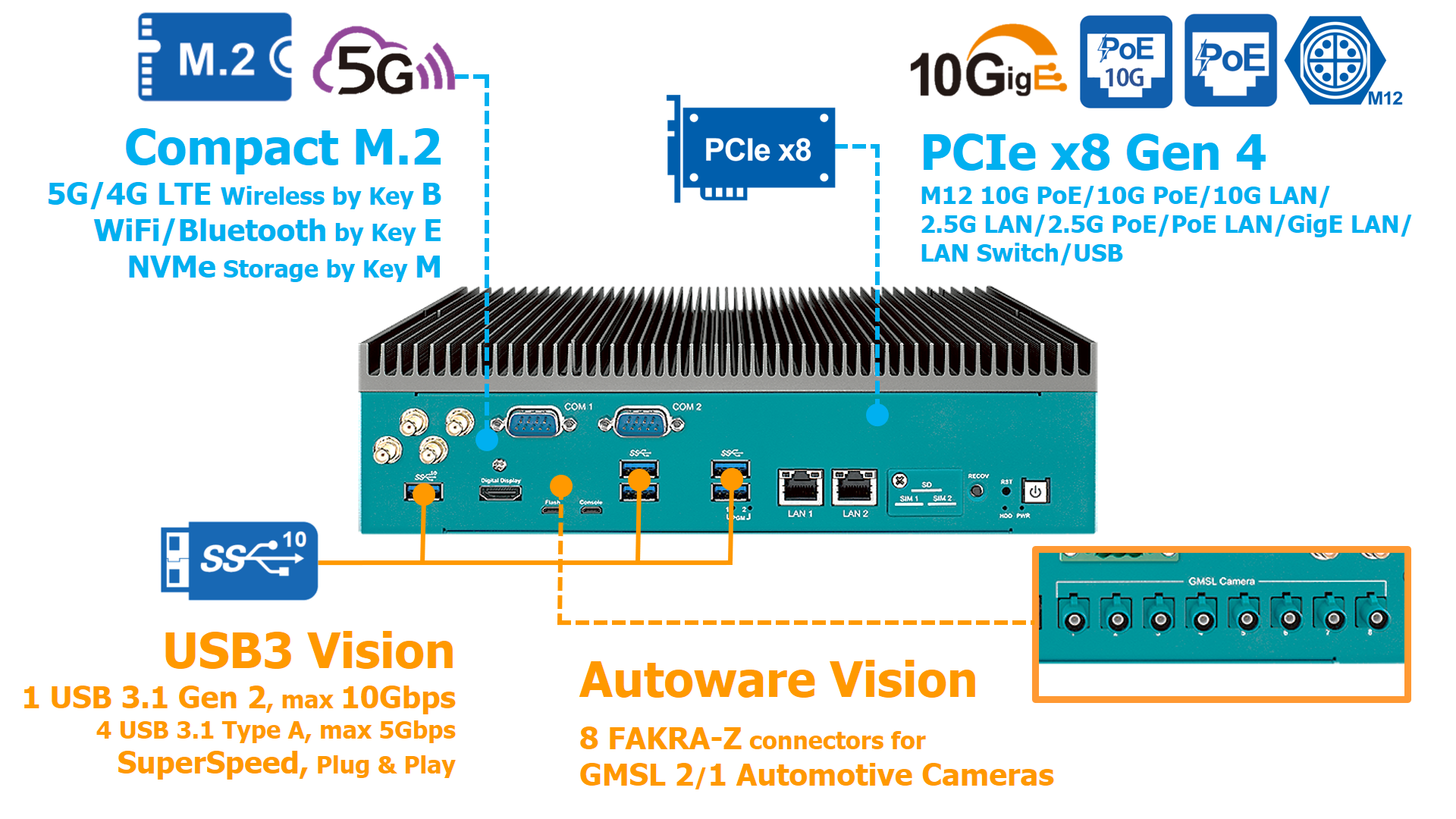

    Flexible Integration

    • Supports GMSL Gen 2/Gen 1 automotive cameras via 8 FAKRA-Z connectors
    • 2 GigE LAN, 2 COM RS-232/422/485, 2 External SIM Socket
    • 5 USB 3.1, up to 10Gbps data transfer
    • Multiple Compact M.2 Socket : M.2 Key B, M.2 Key E, M.2 Key M
    • 1 PCIe Gen 4 x8 expansion slot supports optional multiple 10GigE LAN/PoE LAN/USB connections
    • 8K60 Display, Video Encode, Video Decode

    Mobile Availability

    • Compact Size, Rugged Designs
    • With power configurable between 15W and 60W, high power efficiency
    • Multiple 5G/4G/LTE/WiFi/BT/GPS connection supports always-on wireless communication supporting seamless data delivery
    • CAN Bus and FAKRA-Z for Autoware applications
    • Software Ignition Control optimized for in-vehicle operation
    • Anti-shock, Anti-vibration

    Industrial-grade Reliability

    • Fanless -25°C to 70°C operation
    • DC 9V to 50V wide range power input
    • 16-mode Ignition Power Control
    • 2 Isolated CAN Bus, CAN FD supported
    • 16 Isolated DIO : 8 DI, 8 DO
    • Optional Rugged X-coded GigE LAN
    • EN50155 and EN50121-3-2 compliant
    • Military-grade MIL-STD-810G Compliant



产品简介

    Vecow EAC-5000-OOB Series is powered by NVIDIA Jetson AGX Orin platform that features an Arm® Cortex®-A78AE CPU delivering up to 275 TOPS of AI performance and integrates an advanced NVIDIA Ampere architecture GPU with 64 Tensor Cores. It’s capable of delivering server-class performance for edge AI applications. EAC-5000-OOB Series has integrated with OOB (Out-of-Band) remote management operation technology and brings powerful disaster recovery service onto the Edge AI applications. As a hardware-based technology, the Out-of-Band management helps service providers effortlessly power ON/OFF devices remotely and bring unresponsive systems back to a working state.



产品规格

System
CPU
EAC-5100-OOB-R32 : 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
EAC-5100-OOB-R64 : 12-core Arm® Cortex®-A78AE v8.2 64-bit CPU
GPU
EAC-5100-OOB-R32 : 1792-core NVIDIA Ampere™ architecture GPU with 56 Tensor Cores
EAC-5100-OOB-R64 : 2048-core NVIDIA Ampere™ architecture GPU with 64 Tensor Cores
DL Accelerator 2x NVDLA Engines
Memory
EAC-5100-OOB-R32 :  1 32GB LPDDR5 DRAM
EAC-5100-OOB-R64 : 1 64GB LPDDR5 DRAM
Software Support
- Linux
- NVIDIA JetPack SDK
I/O Interface
USB
- 1 USB 3.2 Gen 2
- 4 USB 3.1
Serial  2 COM RS-232/422/485
CAN Bus 2 Isolated CAN Bus support CAN FD
DIO 16 Isolated DIO (8 DI, 8 DO)
Micro USB
- 1 Micro USB console debug port
- 1 Micro USB OS flash port
Button
- 1 Power Button
- 1 Force Recovery Button
- 1 Reset Button
LED Power, SSD, 2 User Programmable
SIM 2 SIM Card Socket
Antenna 6 Antenna for WiFi/4G/5G/LTE/GPRS/UMTS
Expansion
PCIe 1 PCIe x16 slot with PCIe 3.0 x8 signal
M.2
- 1 M.2 Key B Socket (3042/3052, USB3)
- 1 M.2 Key E Socket (2230, PCIe/USB)
Graphics
Interface 1 Digital Display, up to 8K60
Video Encode EAC-5100-OOB-R32 : 1x 4K @60, 3x 4K @30, 6x 1080p @60, 12x 1080p @30 (HEVC)
EAC-5100-OOB-R64 : 2x 4K @60, 4x 4K @30, 8x 1080p @60, 16x 1080p @30 (HEVC)
Video Decode EAC-5100-OOB-R32 : 1x 8K @30, 2x 4K @60, 4x 4K @30, 9x 1080p @60, 18x 1080p @30 (HEVC)
EAC-5100-OOB-R64 : 1x 8K @30, 3x 4K @60, 7x 4K @30, 11x 1080p @60, 22x 1080p @30 (HEVC)
Storage
M.2 M.2 Key M Socket (2280, PCIe Gen3 x4)
eMMC 1 eMMC 5.1, 64GB
SD 1 Micro SD (External)
Ethernet
LAN 1
10/100/1000 Base-T Ethernet GigE LAN, RJ45 Connector
(Optional X-coded M12 Connector)
LAN 2
10/100/1000 Base-T Ethernet GigE LAN, RJ45 Connector
(Optional X-coded M12 Connector)
Ethernet (PoE)
LAN 3 IEEE 802.3at (25.5W/48V) GigE PoE+ LAN, RJ45 Connector (Optional X-coded M12 Connector)
LAN 4 IEEE 802.3at (25.5W/48V) GigE PoE+ LAN, RJ45 Connector (Optional X-coded M12 Connector)
LAN 5 IEEE 802.3at (25.5W/48V) GigE PoE+ LAN, RJ45 Connector (Optional X-coded M12 Connector)
LAN 6 IEEE 802.3at (25.5W/48V) GigE PoE+ LAN, RJ45 Connector (Optional X-coded M12 Connector)
Power
Power Input DC 9V to 50V
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16-mode Software Ignition Control
Remote Switch 3-pin Remote Switch Terminal Block
OOB Management
MCU Nuvoton NUC980
Interface OOB LAN, 10/100Mb Ethernet LAN, RJ45 Connector
Remote Management Support Remote Power ON/OFF, Reset and Power Cycling
Mechanical
Dimensions 260 mm x 182 mm x 69 mm (10.24"x 7.17" x 2.72")
Weight 3.8 kg (8.39 lb)
Mounting
- Wallmount by mounting bracket
- DIN Rail Mount (Optional)
Environment
Operating Temperature
30W TDP Mode : -25°C to 70°C (-13°F to 158°F)
40/50W TDP Mode : -25°C to 55°C (-13°F to 131°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% @ 70°C
Shock Operating, MIL-STD-810G, Method 516.7, Procedure I
Vibration  Operating, MIL-STD-810G, Method 514.6, Procedure I, Category 4
EMC CE, FCC, EN50155, EN50121-3-2
